Suzhou Paifeite Automation Technology Co., Ltd. is a non-standard automated integration equipment manufacturer based in Suzhou, China, specializing in the research, development, production, and sales of automated integration equipment, with a primary product offering of Pen assembly machines. For manufacturers seeking to automate pen production, selecting the right equipment is critical to balancing speed, quality, and flexibility. This guide provides an overview of the common pen assembly machine types, their specifications, and typical applications to help buyers make informed decisions.

Understanding the Need for Pen Assembly Automation

Manual pen assembly is labor-intensive, prone to inconsistency, and limits production scalability. Automated pen assembly machines address these challenges by delivering consistent output at high speeds, reducing labor costs, and improving product quality. Paifeite Automation offers a range of machines covering different pen types, production volumes, and industry requirements.

Industry Background and Trends

The global stationery manufacturing industry continues to modernize, with increasing demand for automation to meet both mass production and customized batch requirements. Paifeite's export business constitutes 70% of its total sales volume, serving markets in the EU, Asia, North America, and South America. The company's annual production capacity is approximately 180 units, supported by a research and development team comprising 10 engineering professionals operating from a 1750m² facility.

Detailed Product Portfolio

Paifeite's pen assembly machines are designed for various writing instruments and, in some cases, medical devices. The following key models cover the majority of production needs:

• Gel Pen Assembly Machine (Model 399A2): Capacity 120–130 pcs/min, 4 up chain carry horizontal type, dimensions L7000×W1500×H2300 mm, suitable for stationery manufacturing.
• Ballpoint Pen Assembly Machine (Model 395A1): Capacity 120–140 pcs/min, 4 up chain carry horizontal type, dimensions L4800×W1700×H2000 mm, suitable for ballpoint pens and gel pens.
• Marker Pen Assembly Machine (Model 417A1): Capacity 100–120 pcs/min, 4up chain carry horizontal type, dimensions L6900×W2400×H2000 mm, made of aluminum profile, 304 stainless steel, engineering nylon, and painted carbon steel frame. Designed for automatic assembly of marker pens, whiteboard pens, and highlighters.
• Whiteboard Marker Assembly Machine (Model 386A): Capacity 50–70 pcs/min, 2up chain carry horizontal type, dimensions L6800×W1600×H2200 mm.
• Pen Refill Assembly Machine (Model 372A): Capacity 120–140 pcs/min, 4 outputs per time chain carry, dimensions L3500×W1500×H2000 mm, suitable for automatic assembly of all kinds of pen refills.
• Insulin Pen Assembly Machine (Model 363A): Capacity 50–60 pcs/min, 2 outputs per time chain carry, dimensions L3100×W1400×H1800 mm, constructed with medical-grade 304 stainless steel for the medical device industry (insulin pens and medical injection pens).
• Automatic Pen Assembly Machine (Model 396A1): Capacity 120–140 pcs/min, 4 up chain carry horizontal type, dimensions L4800×W1700×H2000 mm, frame made of carbon steel, aluminum alloy, and stainless steel; key parts use alloy steel, engineering plastic, and rubber; control units are pneumatic and electric components. Suitable for stationery, custom advertising, gift pen production, and medical/industrial/cosmetic marking pens.
• Non-standard Pen Assembly Machine (Model 415A): Capacity 120–140 pcs/min, 4up chain carry horizontal type, dimensions L6800×W1800×H2000 mm, constructed from carbon steel, aluminum alloy, stainless steel, and engineering plastics. Covers mass production and automatic assembly of gel pens, ballpoint pens, fountain pens, and other writing instruments.
• Pen Making Assembly Equipment (Model 359A): Capacity 50–60 pcs/min, 2 outputs per time high precision link conveyor, dimensions L4200×W2500×H1900 mm, made of carbon steel, aluminum alloy, stainless steel, and engineering plastics. Designed for stationery & office supplies manufacturing, custom advertising and gift pen production, and medical/industrial/cosmetic marking pen industry.
• Pen Production Line Equipment (Model 357A): Capacity 140 pcs/min, 4 outputs per time chain carry, dimensions L6200×W1800×H2000 mm, made of carbon steel, aluminum alloy, stainless steel, and engineering plastics. Applicable to stationery & office supplies manufacturing, custom advertising and gift pen production, and medical/industrial/cosmetic marking pen industry.

Step-by-Step Assembly Process (Typical Example)

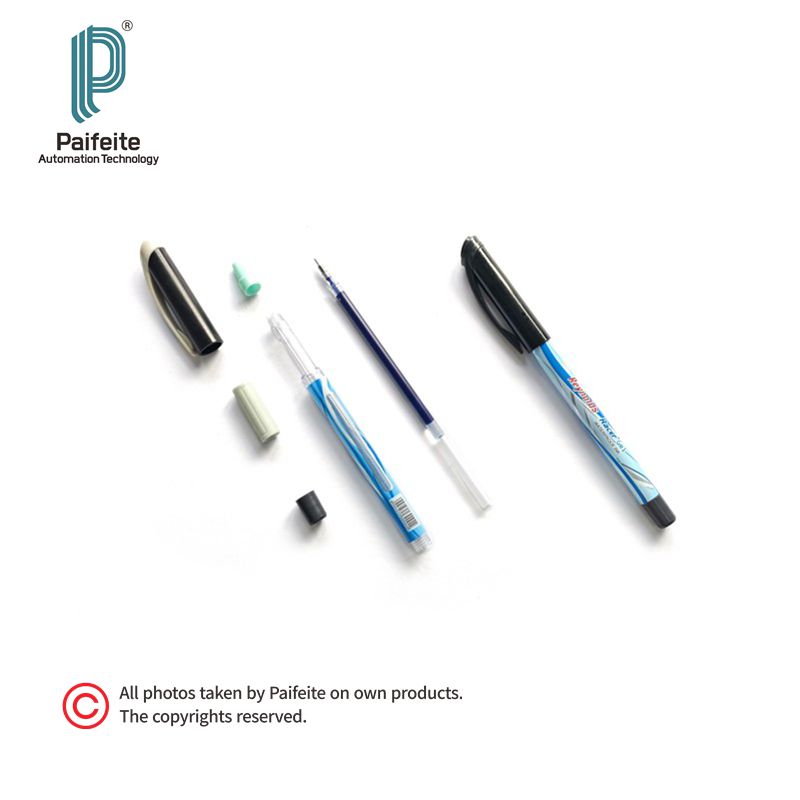

While specific sequences vary by machine, most Paifeite pen assembly machines follow this general flow: 1) Automatic feeding of components (barrel, cap, refill, tip, etc.) via vibratory bowls or conveyors; 2) Horizontal chain carry indexing through multiple stations; 3) Precise assembly of components using pneumatic and servo-driven actions; 4) Optional quality inspection (testing of refill flow, cap torque, etc.); 5) Output of finished pens (e.g., 4 outputs per time for high-speed models). PLC control and touch screen interface allow parameter adjustment for different pen designs.

Use Cases Across Industries

Paifeite's pen assembly machines are suitable for automatic assembly production lines, non-standard automation equipment, and customized machinery solution projects. Primary industries include:

• Stationery manufacturing: Mass production of gel pens, ballpoint pens, marker pens, whiteboard markers, highlighters, and refills.
• Medical device industry: Automatic assembly of insulin pens and medical injection pens (Model 363A).
• Custom advertising and gift pen production: Flexible machines like the Automatic Pen Assembly Machine (396A1) and Pen Making Assembly Equipment (359A) accommodate small-batch custom designs.
• Cosmetic marking pen industry: Applicable models for eyeliner pens, lip liner pens, etc.

Comparison of Key Models

Frequently Asked Questions

For procurement teams evaluating automation partners, Paifeite Automation offers a comprehensive product range, proven export experience, and a dedicated R&D team. To explore how a specific machine can fit your production line, request a quote or download the full product catalog above.

Conclusion

Automating pen assembly is a strategic move to improve output, consistency, and competitiveness. Paifeite Automation provides a wide spectrum of pen assembly machines—from high-speed production lines to specialized medical injector assembly machines—backed by over 20 years of experience and a strong track record in global markets. Whether you need a standard gel pen machine or a fully customized non-standard solution, Paifeite can engineer a system that meets your technical and budgetary requirements.
